Product: Magnetic drilling machine Metallkraft MB 754
Product: Magnetic drilling machine Metallkraft MB 754
Product: Magnetic drilling machine Metallkraft MB 754
Product: Magnetic drilling machine Metallkraft MB 754

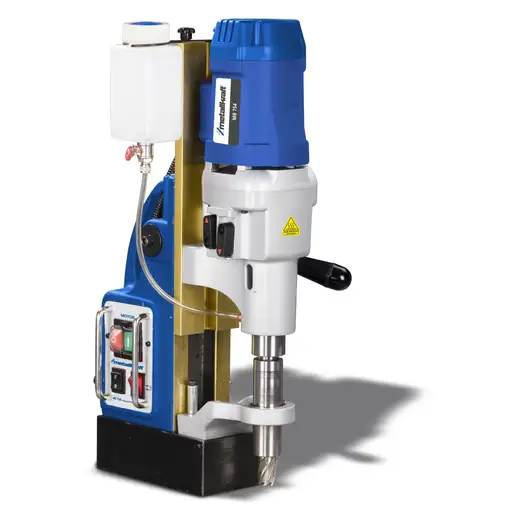

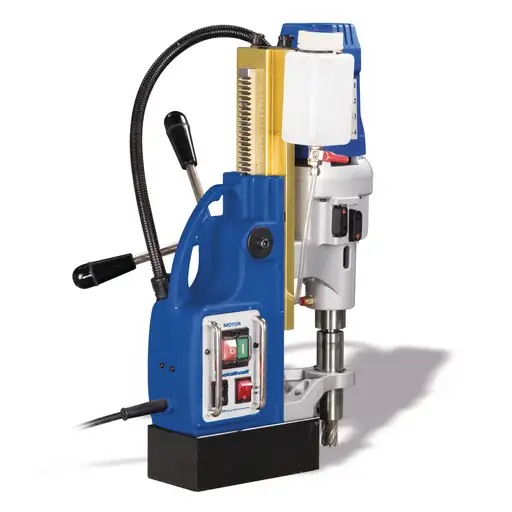

Magnetic drilling machine Metallkraft MB 754

Extended lead time
Product specification
Part number:
3860754
Part manufacturer:
Metallkraft
Offer type:
Original
Offer state:
New
Max. drill bit Ø / solid drilling::
16 / 32 mm
Max. drilling depth/full drilling::
110 / 150 mm
Dimensions (L x W x H)::
330 x 125 x 476 mm
Pintle extension (feed)::
Ręczny -
Max. drill bit Ø/core drilling::
75 mm
Max. drilling depth/core drilling::
50 mm
Mounting bracket::
MK 3 -
Weldon grip attachment::
19 mm
Speed under load in min-1::
90 / 120 / 180 / 230 obr/min.
Engine power::
2000 W
Electrical connection::
230 / 50 V / Hz
Magnetic foot dimensions::
200 x 100 mm
Magnet adhesion force::
32 000 N
Weight::
24,8 kg

Product description

MB 754 - a high-quality magnetic metal drilling machine with a maximum Ø of 75 mm trepan drill, the ability to work at four speeds and a 2 kW motor. - Special drill for trepan drills - Powerful 2000 Watt motor suitable for the toughest jobs - Weldon 19 mm drill chuck - Stable drill guidance thanks to the deeply mounted spindle guide - The unit is properly grounded and double insulated, making it ideal for work on construction sites - Pulling force of 32,000 N - Robust design ensures stable operation and optimal control. - Coolant passing through the drill bit - Right/left-hand rotation - Easy changeover from trepanning drilling to full drilling with a hand lever - Four speed ranges of 90/120/180/230 1/min. Standard equipment: - 1 coolant tank - 1 coolant hose - 1 guard - 1 hex key 4 mm - 1 hex key 2.5 mm - 1 machine wrench - 3 handles - 1 chain - Case - Knockout
