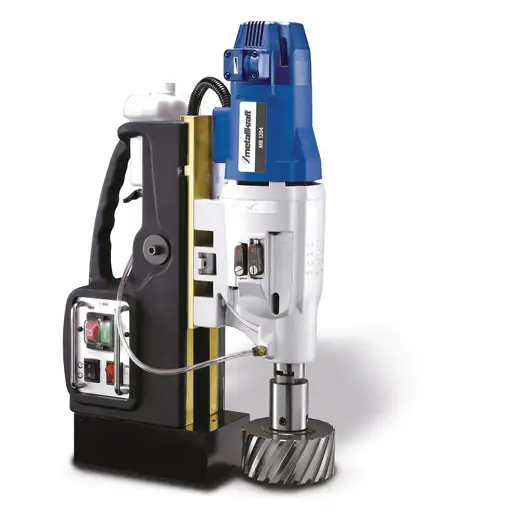

Magnetic drilling machine Metallkraft MB 1204
Extended lead time
Product specification
Part number:
3861204
Part manufacturer:
Metallkraft
Offer type:
Original
Offer state:
New
Max. drill bit Ø / solid drilling::
16 / 32 mm
Max. drilling depth/full drilling::
110 / 150 mm
Dimensions (L x W x H)::
330 x 125 x 476 mm
Pintle extension (feed)::
Ręczny -
Max. drill bit Ø/core drilling::
120 mm
Max. drilling depth/core drilling::
75 mm
Mounting bracket::
MK 3 -
Weldon grip attachment::
19 mm
Speed under load in min-1::
120 / 220 / 250 / 450 obr/min.
Engine power::
2000 W
Electrical connection::
230 / 50 V / Hz
Magnetic foot dimensions::
210 x 120 mm
Magnet adhesion force::
32 000 N
Weight::
28,3 kg
Product description
MB 1204 - a high-quality magnetic metal drilling machine with a maximum Ø of 120 mm trepan drill, the ability to work at four speeds and a 2 kW motor.
- For trepan drill bits with 19 mm Weldon chuck
- Stable drill guidance thanks to the deeply mounted spindle guide
- The unit is grounded and double insulated, making it ideal for construction work
- High pulling power
- High-quality construction
- Coolant passing through the drill bit
- Easy changeover from trepan drilling to full drilling with a hand lever
- Safe and reliable operation
- Four speeds
- 2,000 Watt motor
- Maximum pulling force 32,000 N
- Right / left running
Standard equipment:
- 1 coolant tank
- 1 coolant hose
- 1 guard
- 1 hex key 4 mm
- 1 hex key 2.5 mm
- 1 machine wrench
- 3 handles
- 1 chain
- Case
